NET CAMERA 4MP DOME HDBW5459R-ASE-IL-0280B DAHUA

Dome | Ceiling | White | IP code IP67 | IP security camera | Wired | Placement Indoor & outdoor | Wide Dynamic Range (WDR) Yes | Day/night mode Yes | Alarm input/output Yes | Minimum illumination 0.0007 lx | Pan range 0 – 355 ° | White balance Auto/Manual/Outdoor | Camera shutter type Electronic | Optical sensor size 1/1.8 ” | Sensor type CMOS | 1xNumber of lenses | Identify distance 9.7 m | Total megapixels 4 MP | Frame rate 60 fps | Noise reduction Yes | Built-in microphone Yes | Ethernet LAN Yes | Power source type DC,PoE | Weight 713 g | 1xNumber of cameras

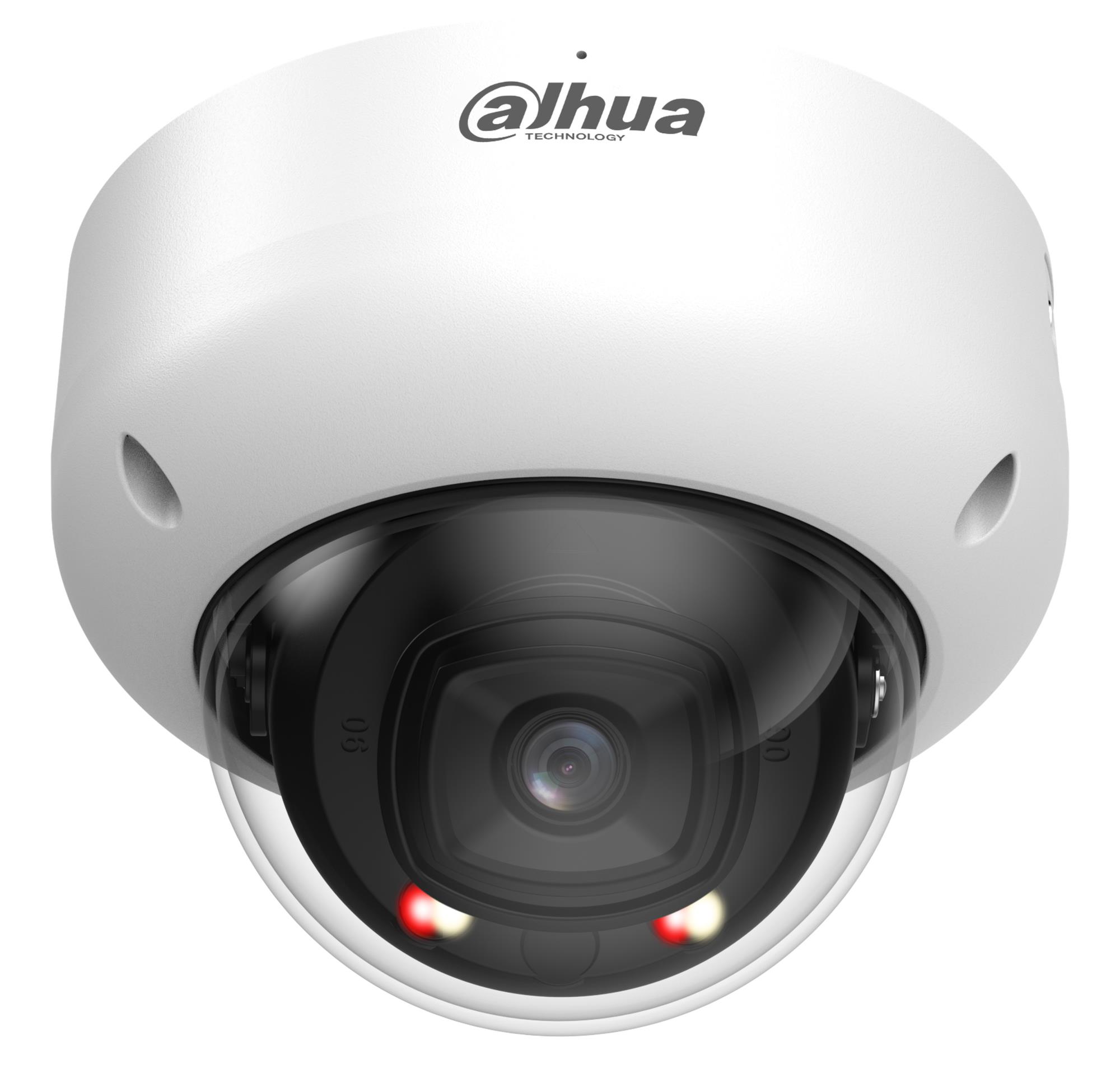

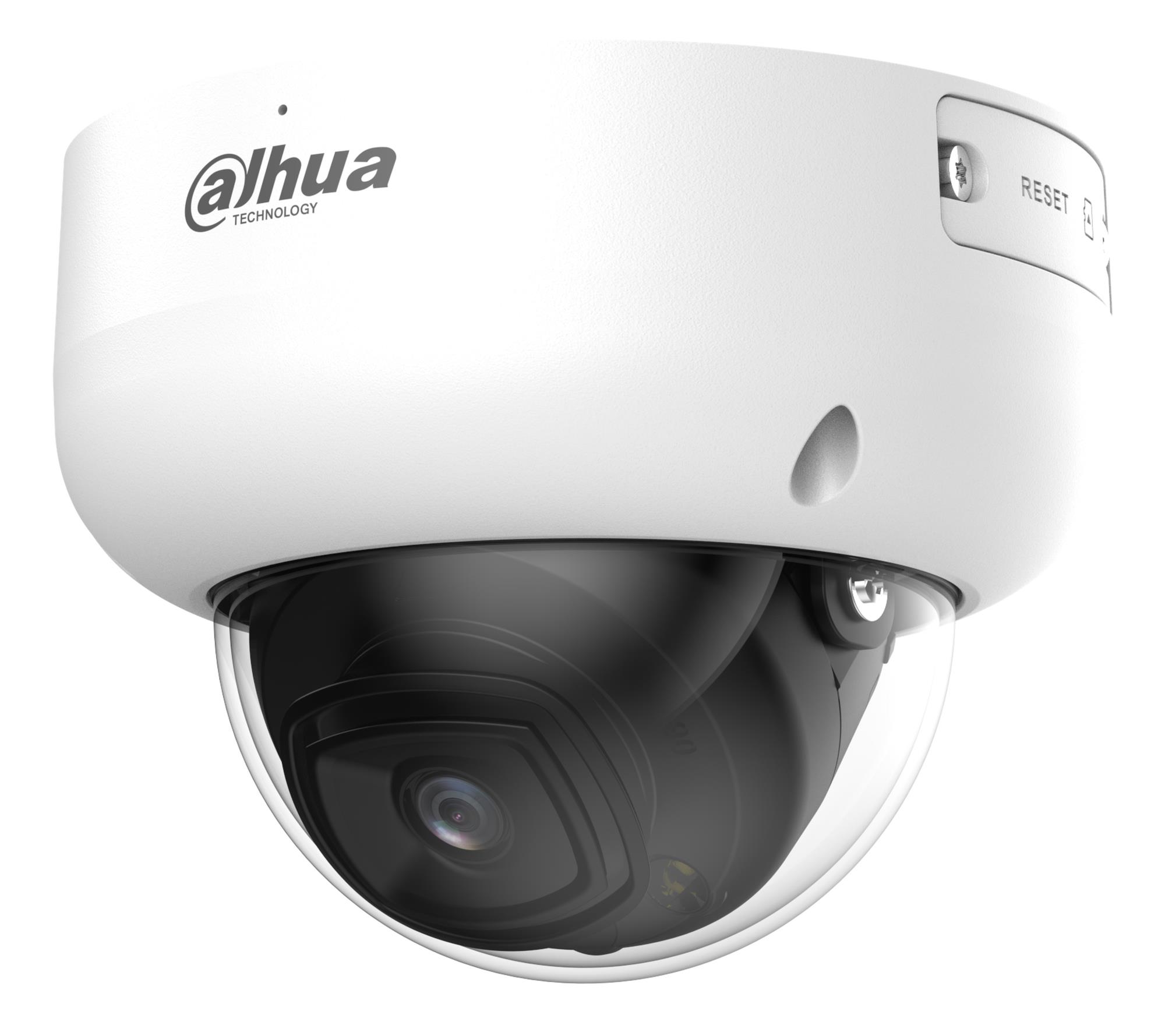

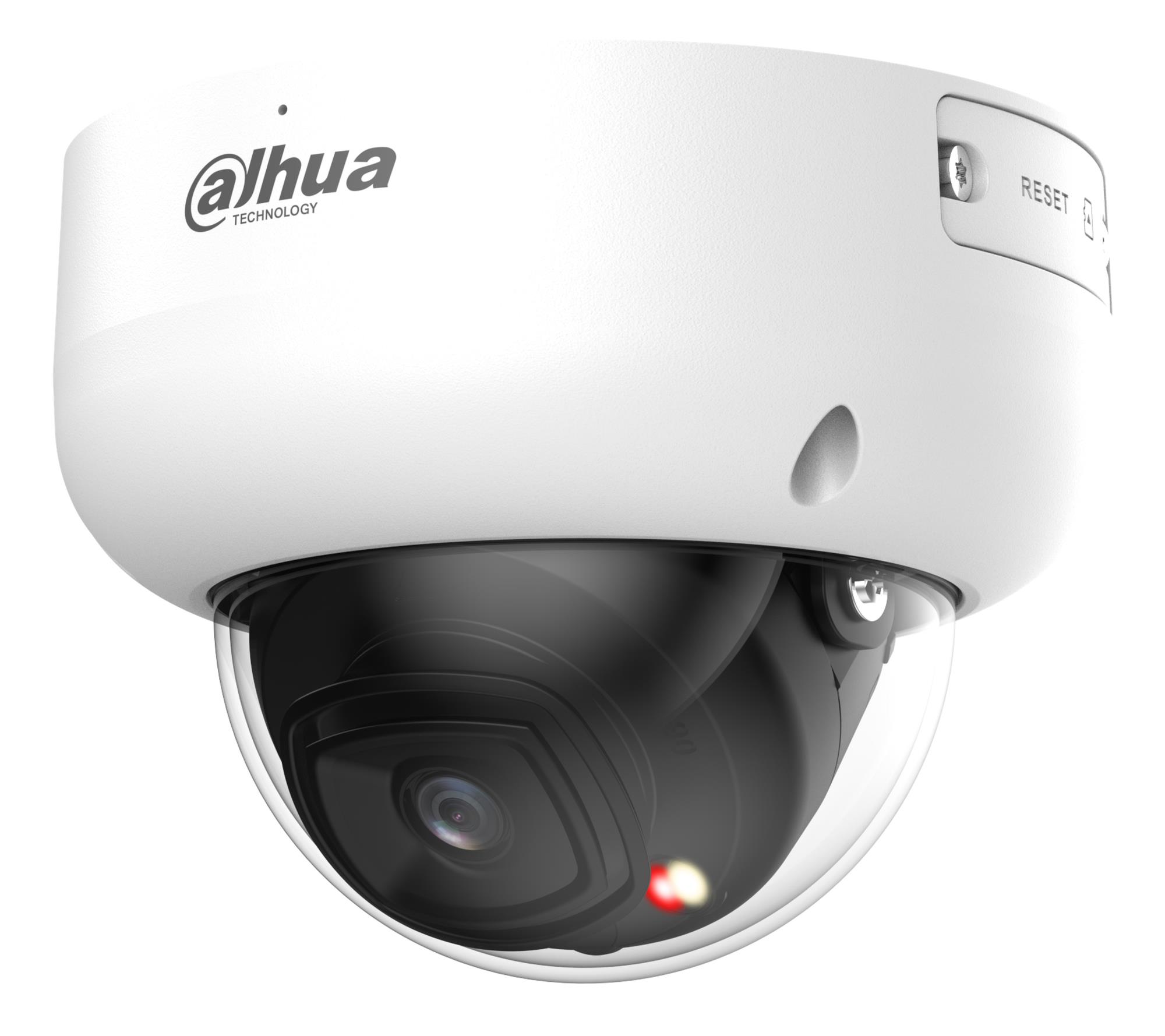

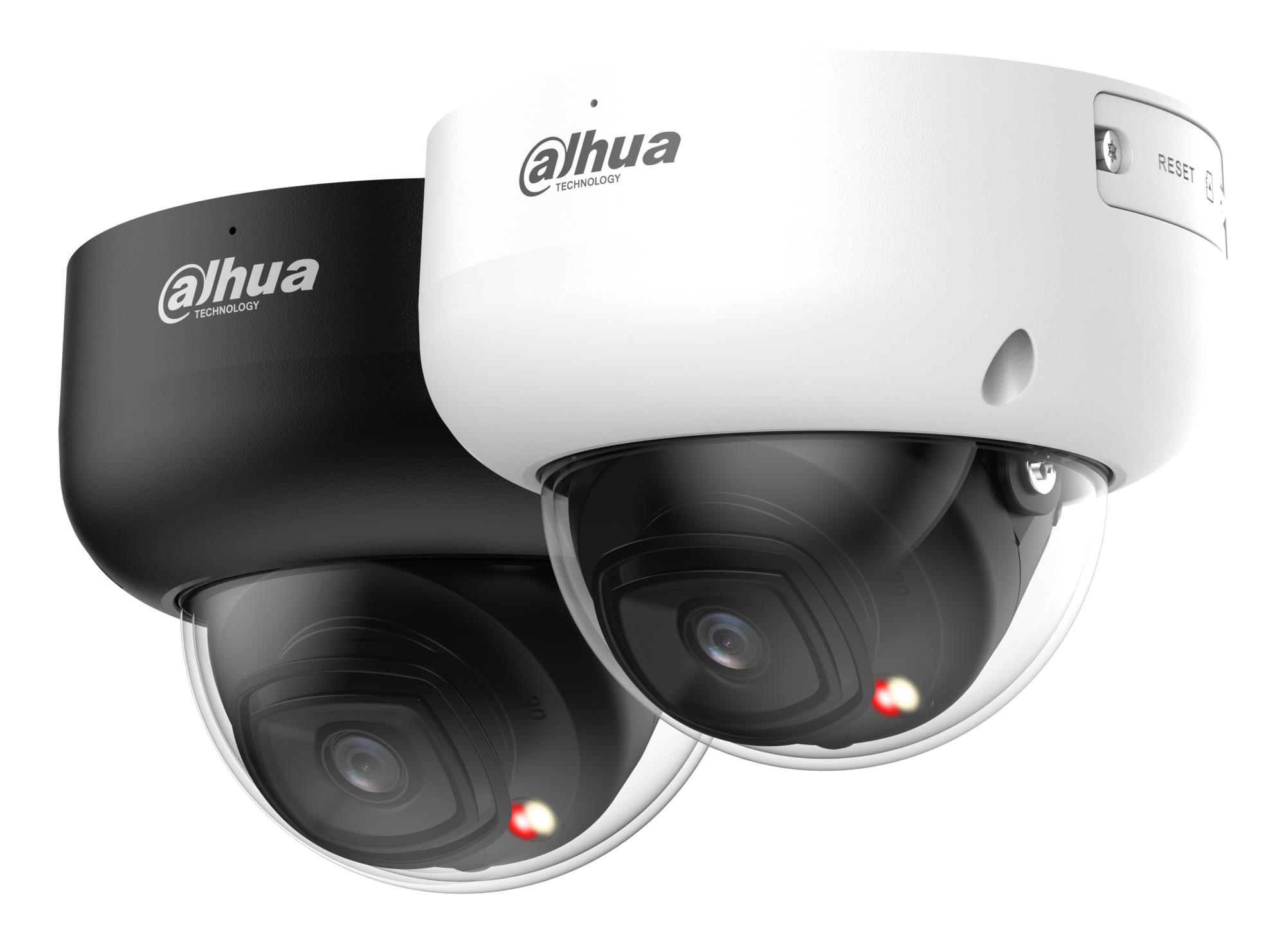

4MP Smart Dual Light Fixed-focal Vandal-proof Dome WizMind Network Camera

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

With its deep learning algorithms, the WizMind 5 Series camera offers advanced analytical capabilities for both audio and video. It integrates intelligent features such as video metadata, AcuPick, face detection, perimeter protection, and people counting. Powered by the Xinghan Large-Scale AI Models-Vision, the camera excels in object detection, recognition, and scene adaptation. Equipped with AI-ISP imaging technology, it offers enhanced night vision performance. The series is designed for durability, being dust-proof, waterproof, and vandal-proof, in compliance with IP67 and IK10 standards, though support for these certifications may vary across models.

Xinghan Large-Scale AI Models-Vision
Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.

Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

AcuPick
This industry-leading search technology effectively utilizes both front-end and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

• 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520) @25/30 fps.
• Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
• ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
• With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
• 12 VDC/PoE power supply; ePoE
• IP67 and IK10 protection.
