Desktop/pedestal | 6x10Base-T / 100Base-TX / 1000Base-T | PoE+ ports 4 | Switching capacity 12 Gbps | Forwarding rate 8.928 Mpps | Switching method Store-and-forward | Power supply External | Dimensions 158x101x25 mm | Product Net Weight 0.6 kg

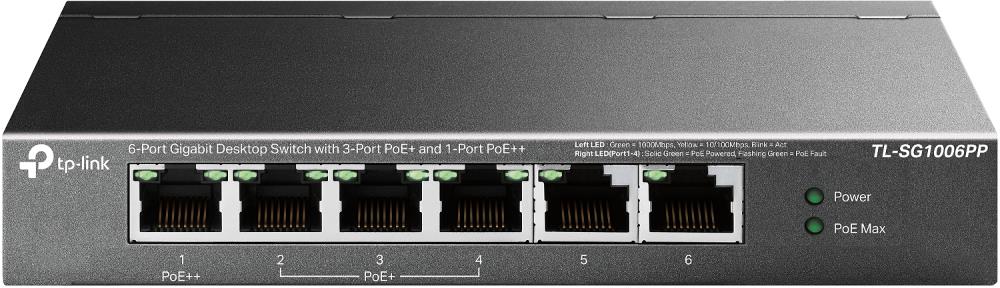

6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
6× 10/100/1000 Mbps RJ45 ports
With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at/bt compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
Supports PoE Power up to 64 W for all PoE ports

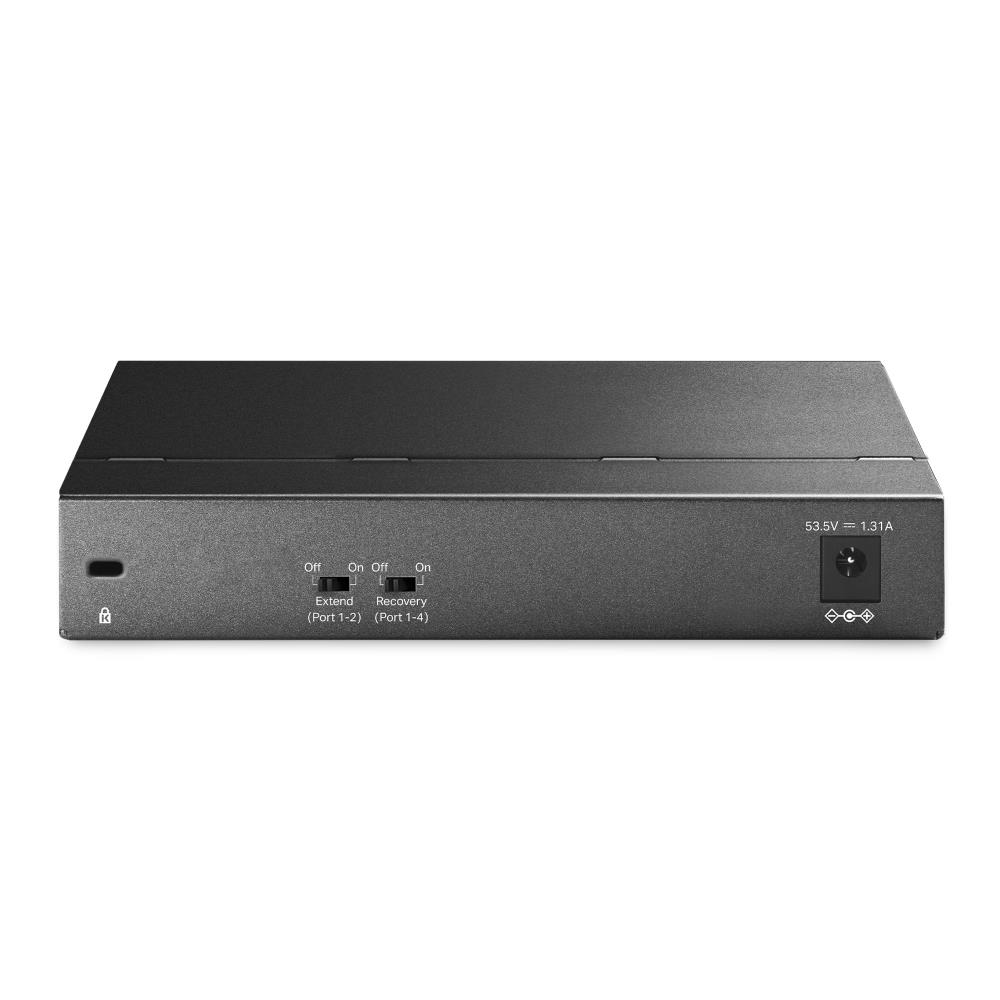

Up to 250m data and power transmitting range under Extend Mode
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play, no configuration and installation required
Unit Box Height | 0.13 |
Unit Box Length | 0.195 |
Unit Box Width | 0.12 |
Desktop/pedestal | Yes |
10Base-T / 100Base-TX / 1000Base-T | 6 |
Model name | TL-SG1006PP |
Primary port count | 6 |
PoE+ ports | 4 |
Switching capacity | 12Gbps |
Forwarding rate | 9Mpps |
Switching method | Store-and-forward |
Power supply | External |
Dimensions | 158x101x25 mm |
Units per Shipping Box | 1 |
Unit Calculated Volume | 0cubm |
Product Net Weight | 1kg |
Unit Calculated Weight | 1kg |
