Series Omada | Type L2 | Switching capacity 56 Gbps | Forwarding rate 41.66 Mpps | Dimensions 440 × 180 × 44 mm | Product Net Weight 2.5 kg

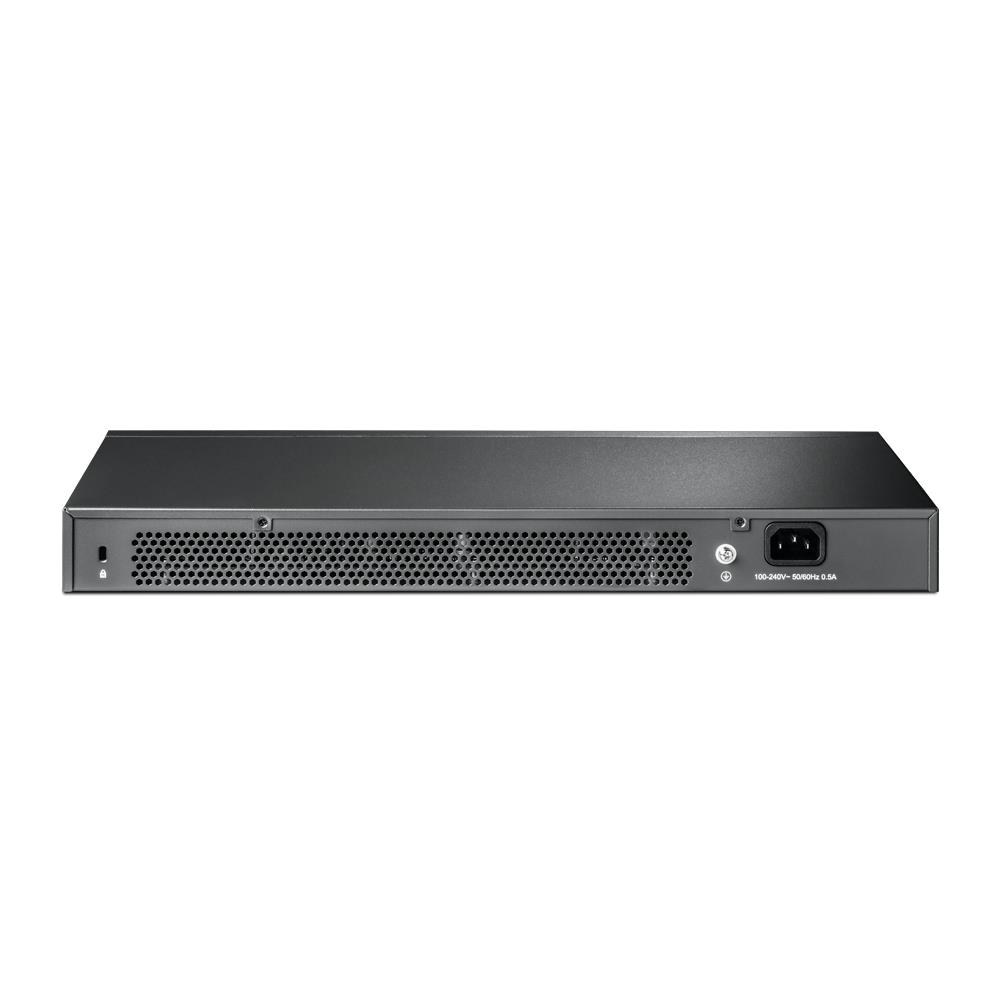

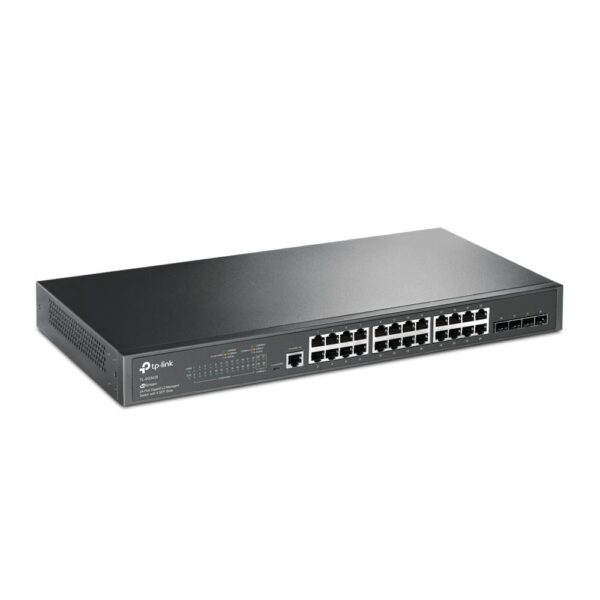

JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
- Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
| Unit Box Height | 0.08 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.255 |
| Rack | Yes |
| Console | 1 |
| SFP | 4 |
| 10/100/1000M | 24 |
| Micro-USB | 1 |
| Series | Omada |
| Model name | TL-SG3428 |
| Switch type | L2 |
| Primary port count | 24 |
| Switching capacity | 56Gbps |
| Forwarding rate | 41.66Mpps |
| Dimensions | 440 × 180 × 44 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01081cubm |
| Product Net Weight | 2.5kg |
| Unit Calculated Weight | 2.85kg |
