Series JetStream | PoE+ ports 16 | PoE power budget 150 Watts | Switching capacity 36 Gbps | Forwarding rate 26.78 Mpps | Dimensions 440 × 180 × 44 mm | Product Net Weight 2.1 kg

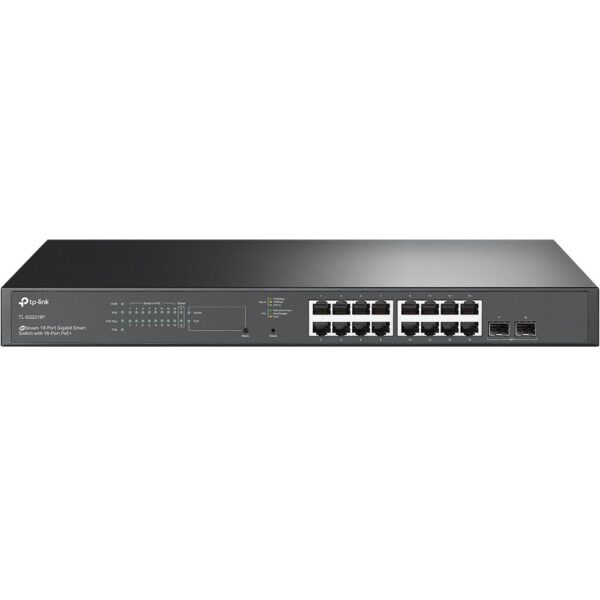

JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W.
Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
Unit Box Height | 0.08 |
Unit Box Length | 0.54 |
Unit Box Width | 0.25 |
Desktop/pedestal | Yes |
10Base-T / 100Base-TX / 1000Base-T | 16 |
SFP | 2 |
IEEE 802.1D | Yes |
IEEE 802.1p | Yes |
IEEE 802.1Q | Yes |
IEEE 802.1s | Yes |
IEEE 802.1w | Yes |
IEEE 802.1x | Yes |
IEEE 802.3ab | Yes |
IEEE 802.3ad | Yes |
IEEE 802.3az | Yes |
IEEE 802.3i | Yes |
IEEE 802.3u | Yes |
IEEE 802.3x | Yes |
IEEE 802.3z | Yes |
Series | JetStream |
Model name | TL-SG2218P |
Primary port count | 16 |
PoE+ ports | 16 |
PoE power budget | 150Watts |
Switching capacity | 36Gbps |
Forwarding rate | 26.78Mpps |
Dimensions | 440 × 180 × 44 mm |
Units per Shipping Box | 1 |
Unit Calculated Volume | 0.0108cubm |
Product Net Weight | 2.1kg |
Unit Calculated Weight | 3.2kg |
