Channels 4 | Desktop/pedestal | Rack | CPU Industrial-grade | Integrated LAN 10/100 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 1.5 A | Power consumption 10 Watts | Dim. 204.6 × 206.4 × 45.6 mm | Temp. range –10 °C to +55 °C | Colour White

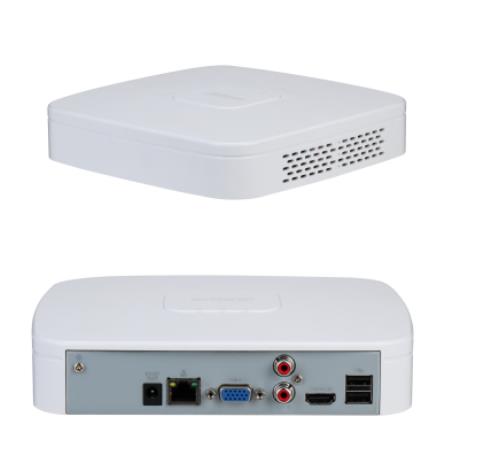

4CH Smart 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming
| Unit Box Height | 0.26 |
| Unit Box Length | 0.36 |
| Unit Box Width | 0.095 |
| Desktop/pedestal | Yes |
| Rack | Yes |
| 15pin D-sub | 1 |
| HDMI | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| USB 2.0 | 2 |
| RJ45 | 1 |
| Model | DHI-NVR2104-4KS3 |
| Number of Channels | 4 |
| CPU | Industrial-grade |
| Integrated LAN | 10/100 |
| Power supply requirements | 12 VDC, 1.5 A |
| Power consumption | 10Watts |
| Dimensions | 204.6 × 206.4 × 45.6 mm |
| Operating temperature range | –10 °C to +55 °C |
| Colour | White |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0cubm |
| Product Net Weight | 0kg |
| Unit Calculated Weight | 1kg |
