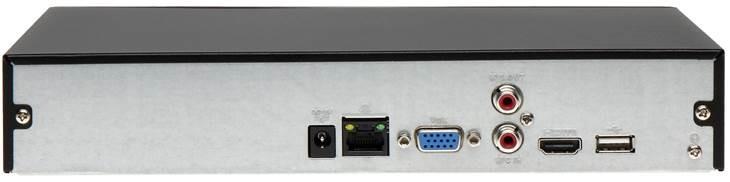

Channels 16 | Drives/bays 1 | Desktop/pedestal | Rack | CPU Industrial-grade processor | SATA | Integrated LAN Gigabit | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C

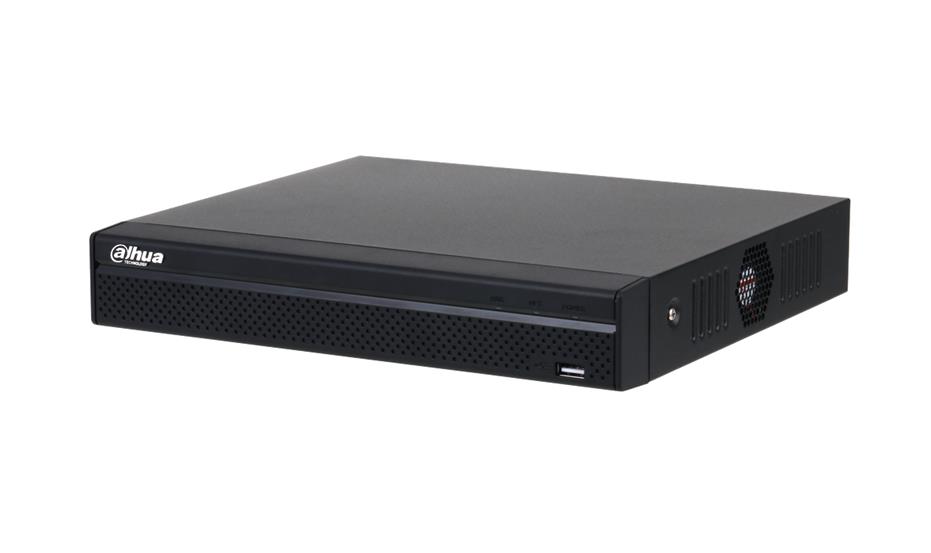

16CH Compact 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
Unit Box Height | 0.31 |
Unit Box Length | 0.335 |
Unit Box Width | 0.085 |
Desktop/pedestal | Yes |
Rack | Yes |
SATA | Yes |
15pin D-sub | 1 |
HDMI | 1 |
Audio-In | 1 |
Audio-Out | 1 |
USB 2.0 | 2 |
RJ45 | 1 |
Model | NVR4116HS-4KS3 |
Number of Channels | 16 |
Number of drives/bays | 1 |
CPU | Industrial-grade processor |
Integrated LAN | Gigabit |
Power supply requirements | 12 VDC, 2 A |
Power consumption | 10Watts |
Dimensions | 260.0 × 232.5 × 47.6 mm |
Operating temperature range | –10 °C to +55 °C |
Units per Shipping Box | 1 |
Unit Calculated Volume | 0cubm |
Product Net Weight | 1kg |
Unit Calculated Weight | 1kg |
