Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.7 mm–12 mm | IR Illumination | Sensor size 1/1.8″ CMOS | Microphone Built-in | Min. Illumination 0.0004 Lux | Effective pixels 2688 (H) × 1520 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xMicroSD Card Slot | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 1TB | Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE | Environment Outdoor | Operating temperature range –30 °C to +60 °C | Colour Black | Dimensions Φ159.1 mm × 118.1 mm
IPC-HDBW5442E-ZE2712-S3-B

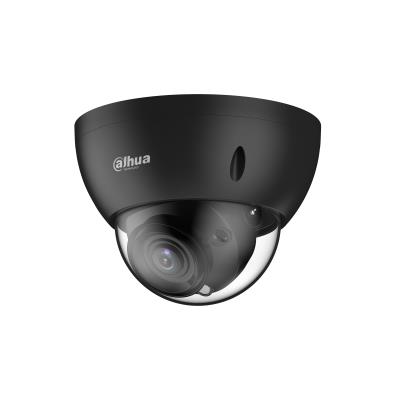

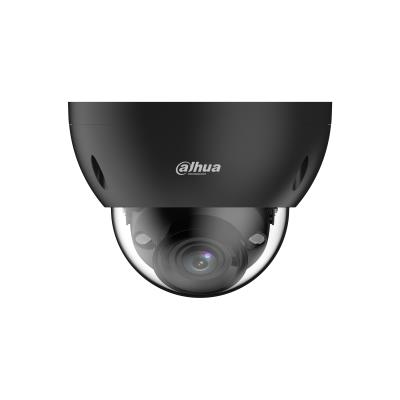

4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0
Focal Length: 2.7 mm–12 mm, Field of View: H: 115°–47°
Unit Box Height | 0.145 |
Unit Box Length | 0.185 |
Unit Box Width | 0.185 |
Audio-In | 1 |
Audio-Out | 1 |
MicroSD Card Slot | 1 |
RJ45 | 1 |
Alarm In | 1 |
Alarm Out | 1 |
Model | IPC-HDBW5442E-ZE2712-S3-B |
Camera design | Dome |
Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
Pixel Resolution | 4Mega Pixel |
Focal Length | 2.7 mm–12 mm |
IR Illumination | Yes |
Sensor size | 1/1.8″ CMOS |
Microphone | Built-in |
Min. Illumination | 0Lux |
Effective pixels | 2688 (H) × 1520 (V) |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Supports card capacities up to | 1TB |
Power supply requirements | 12 VDC/24 VAC/PoE (802.3af)/ePoE |
Environment | Outdoor |
Operating temperature range | –30 °C to +60 °C |
Colour | Black |
Dimensions | Φ159.1 mm × 118.1 mm |
Units per Shipping Box | 1 |
Unit Calculated Volume | 0cubm |
Product Net Weight | 1kg |
Unit Calculated Weight | 1kg |
