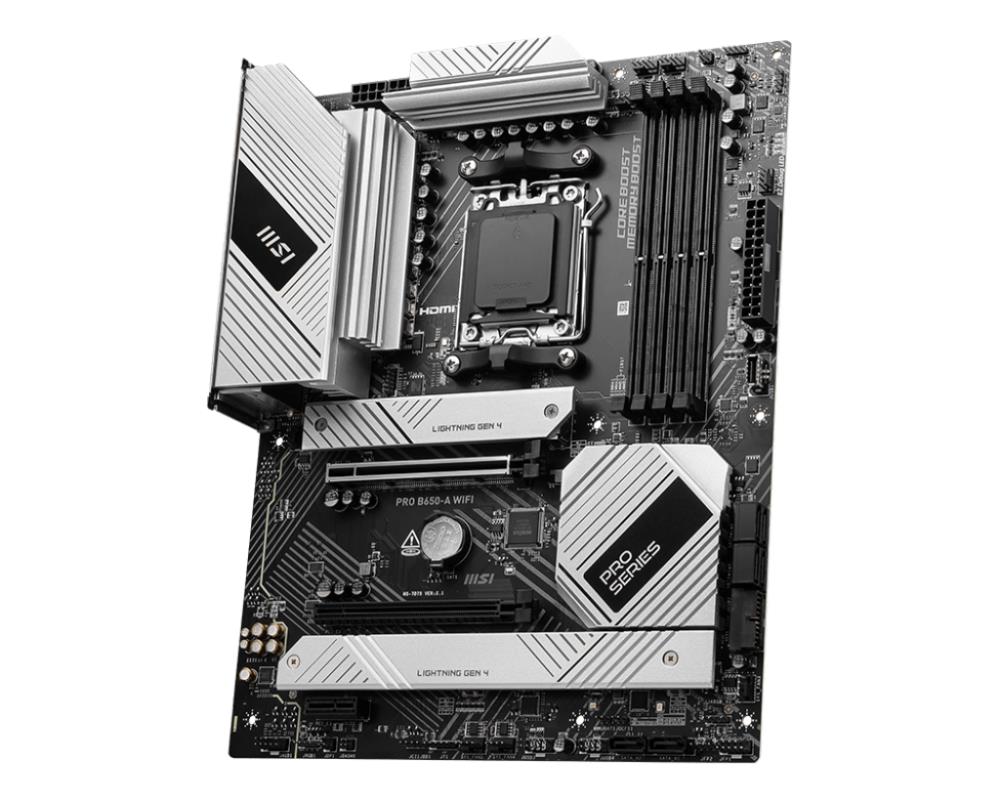

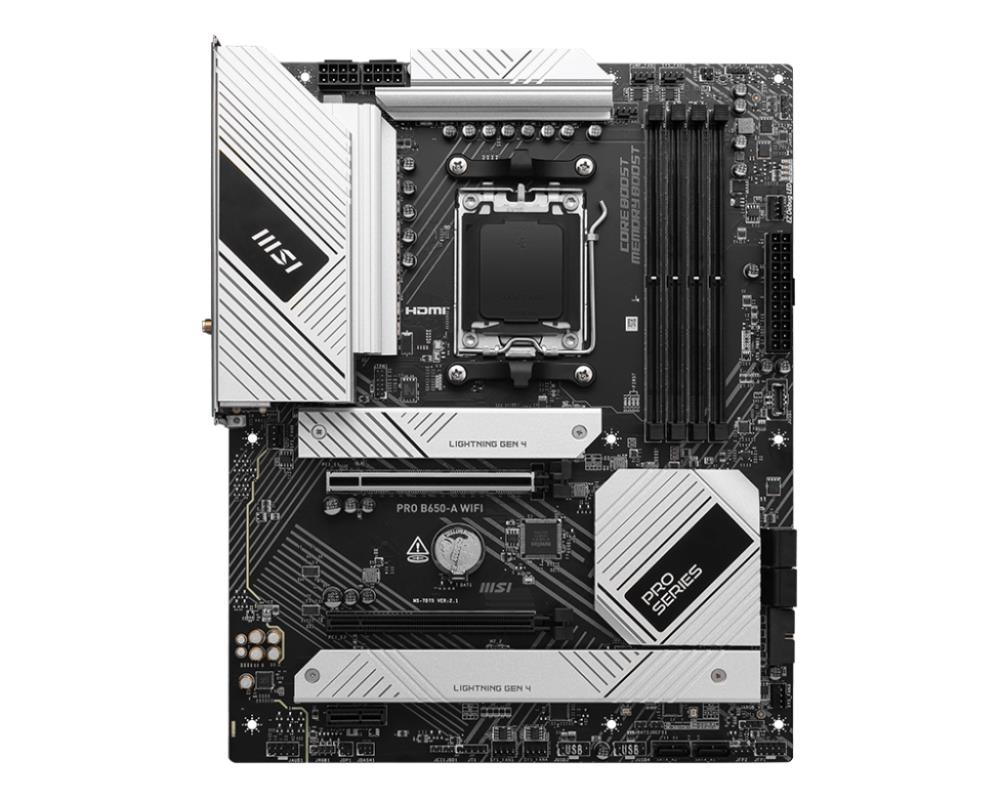

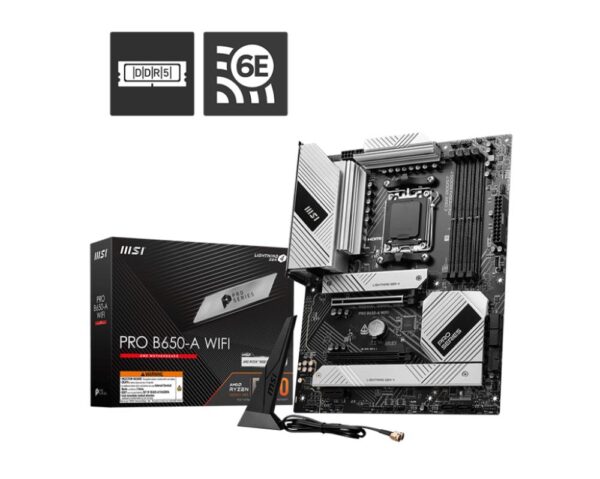

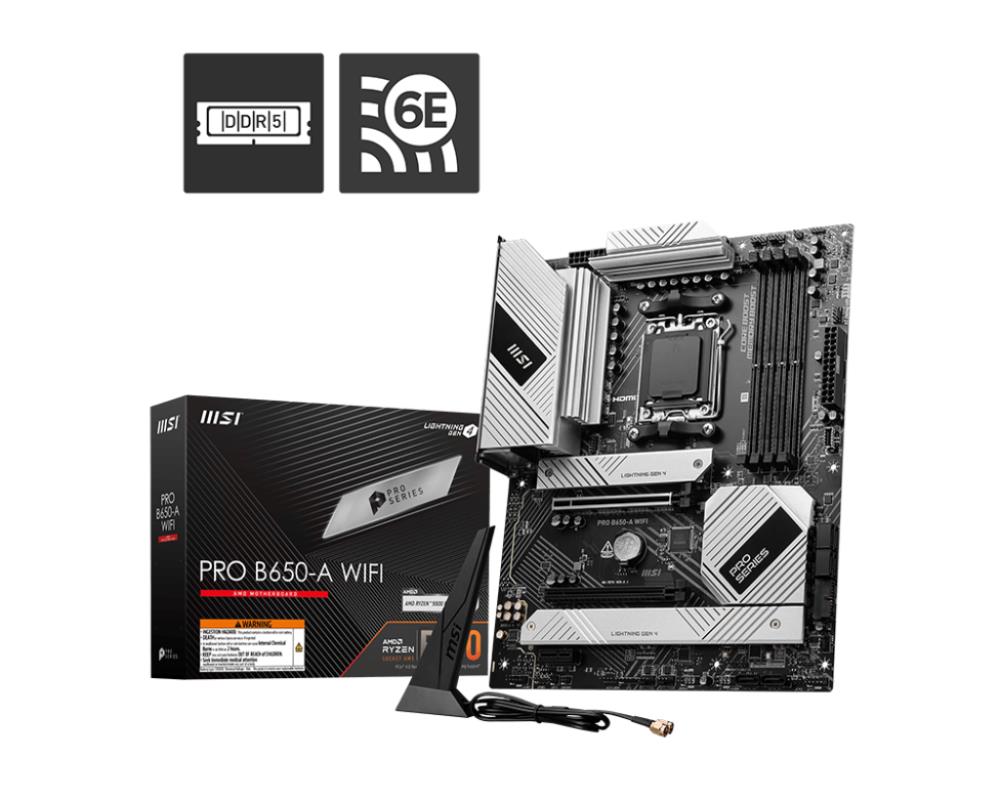

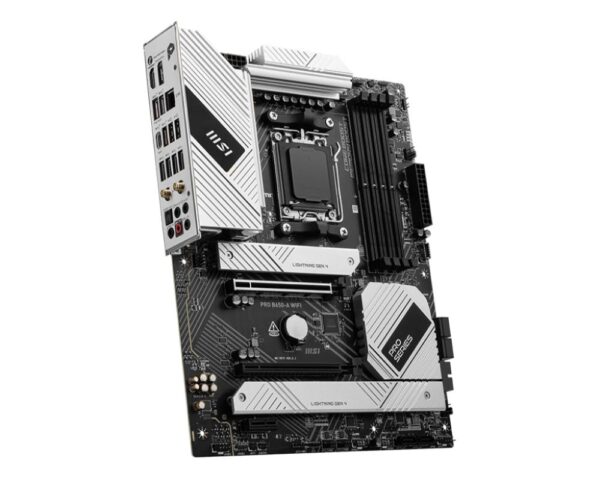

Mainboard MSI AMD B650 SAM5 ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 2x 1xPCI-Express 4.0 16x 3xM.2 1xHDMI 1xDisplayPort 2xUSB 2.0 7xUSB 3.2 1xUSB-C 1xOptical S PDIF 1xRJ45 3xAudio port PROB650-AWIFI

High-performance AMD B650 ATX motherboard with support for DDR5 memory up to 7600+ MHz, advanced cooling, PCIe 4.0 slots, Wi-Fi 6E, 2.5G LAN, and extensive connectivity options.

MSI

190,78€
€157.67 (bez PVN)

AMD B650 | SAM5 | ATX | DDR5 | 7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | 1xPCI-Express 3.0 1x | 1xPCI-Express 4.0 2x | 1xPCI-Express 4.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 2xUSB 2.0 | 7xUSB 3.2 | 1xUSB-C | 1xOptical S/PDIF | 1xRJ45 | 3xAudio port | SATA | Bluetooth | WiFi | Video Depending on CPU | Audio Realtek ALC4080 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 10 | TPM Header

PRO B650-A WIFI

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
  • Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Unit Box Height 0.07
Unit Box Length 0.345
Unit Box Width 0.27
PCI-Express 3.0 1x 1
PCI-Express 4.0 2x 1
PCI-Express 4.0 16x 1
M.2 3
HDMI 1
DisplayPort 1
USB 2.0 2
USB 3.2 7
USB-C 1
Optical S/PDIF 1
RJ45 1
Audio port 3
SATA Yes
Bluetooth Yes
WiFi Yes
Model PRO B650-A WIFI
Chipset AMD B650
Socket SAM5
Form Factor ATX
Memory type DDR5
Frequency speed 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600MHz
Memory slots 4
Integrated video Depending on CPU
Integrated audio Realtek ALC4080
Integrated LAN 2.5 Gigabit
RAID SATA 0, 1, 10; NVMe 0, 1, 10
TPM Header
Units per Shipping Box 5
Unit Calculated Volume 0cubm
Product Net Weight 1kg
Unit Calculated Weight 2kg
SKU: MSI-PRO-B650-A-WIFI Category:
