Mainboard ASUS Intel B760 Express LGA1700 Micro-ATX Memory DDR4 Memory slots 4 1xPCI-Express 4.0 16x 2xM.2 1xHDMI 1xDisplayPort 4xUSB 2.0 2xUSB 3.2 1xPS 2 1xRJ45 3xAudio port PRIMEB760M-AD4-CSM

Micro-ATX motherboard with Intel B760 chipset, supporting LGA1700 processors, DDR4 memory, PCIe 4.0, dual M.2 slots, 2.5Gb Ethernet, HDMI, DisplayPort, and comprehensive cooling solutions.

ASUS

119,74€
€98.96 (bez PVN)

Intel B760 Express | LGA1700 | Micro-ATX | DDR4 | 5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz | Memory slots 4 | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10 | TPM Header

PRIME B760M-A D4-CSM

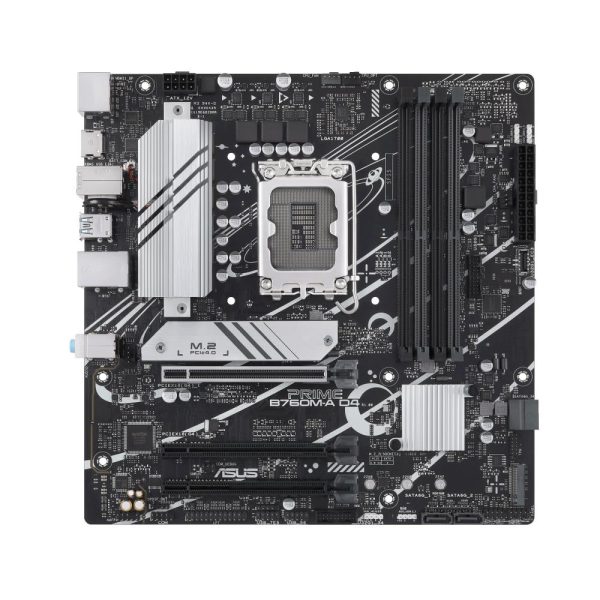

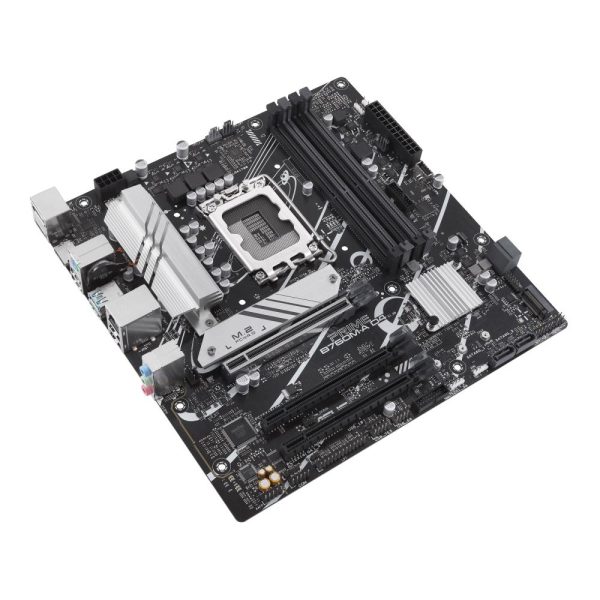

Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Unit Box Height 0.05
Unit Box Length 0.26
Unit Box Width 0.27
M.2 2
PCI-Express 4.0 16x 1
Audio port 3
DisplayPort 1
HDMI 1
PS/2 1
RJ45 1
USB 2.0 4
USB 3.2 2
SATA Yes
Model PRIME B760M-A D4-CSM
Chipset Intel B760 Express
Socket LGA1700
Form Factor Micro-ATX
Memory type DDR4
Frequency speed 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333MHz
Memory slots 4
Integrated video Depending on CPU
Integrated LAN 2.5 Gigabit
Integrated audio Yes
RAID SATA 0, 1, 5, 10
TPM Header

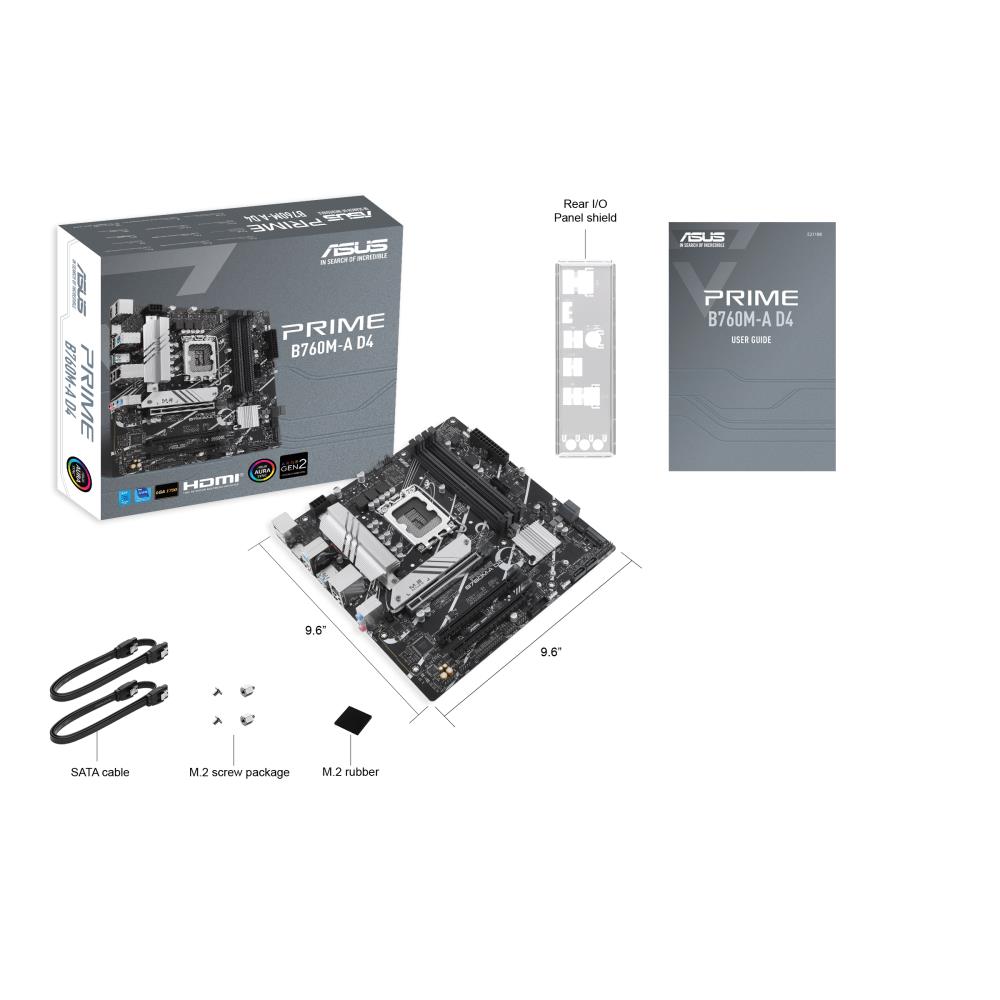

Included Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Units per Shipping Box 10
Unit Calculated Volume 0.004547cubm
Product Net Weight 0.7kg
Unit Calculated Weight 1.15kg
